CC Series

  • UHMW or high temperature material ™
  • Provides self-lubricating track

Click on the photos below for a larger view.

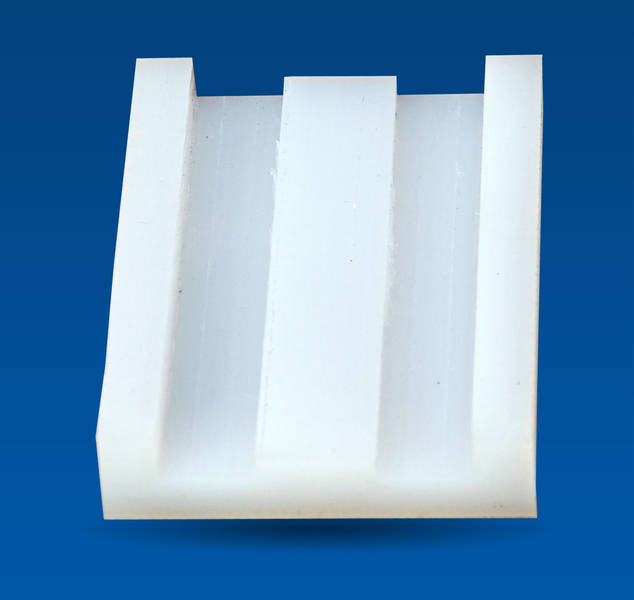

CC Series Chain Rail & Wear Strips

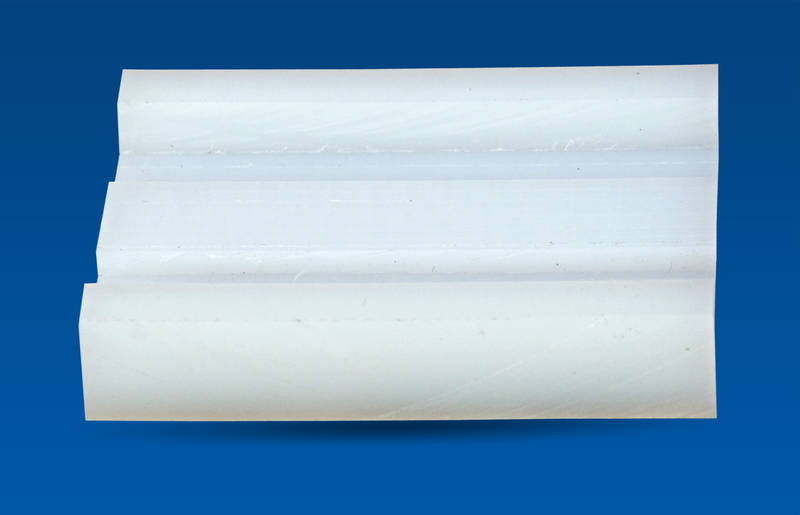

CC Series Chain Rail & Wear Strips

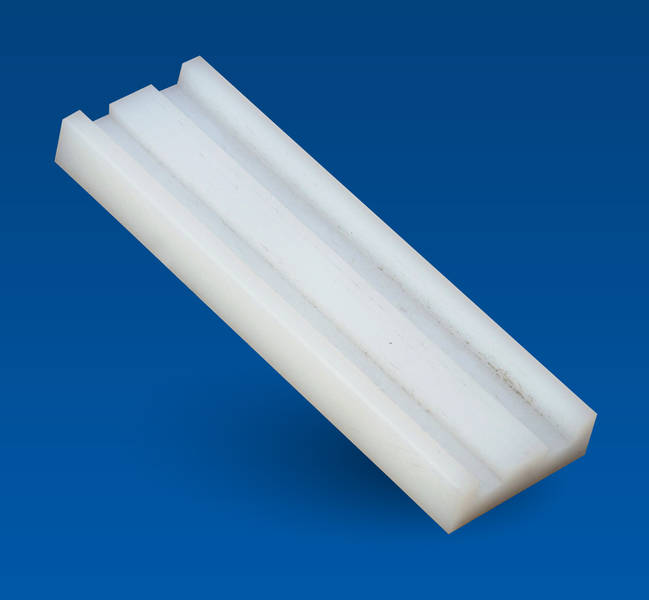

CC Series Chain Rail & Wear Strips
CC Series Chain Rail & Wear Strips
CC Series Chain Rail & Wear Strips

1

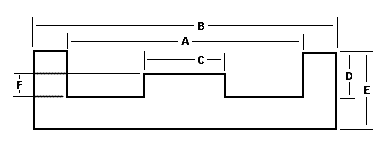

CC Series Diagram

DIMENSIONAL DATA

*Nomenclature A B C D E F
CC-2040 0.69 1.00 0.25 0.14 0.31 0.08
CC-2050 0.82 1.25 0.31 0.19 0.38 0.10
CC-2060 1.12 1.50 0.44 0.21 0.50 0.12
CC-2080 1.44 2.00 0.56 0.25 0.50 0.13
CC-2100 1.57 2.13 0.69 0.31 0.63 0.16

*Note: Nomenclature is designed to fit the applicable ANSI chain number
