4-Bolt Flange Bearings

  • Any Bore Size
  • Ships Today
  • UHMW (to 200°F) high temperature material ™ (to 600°F)

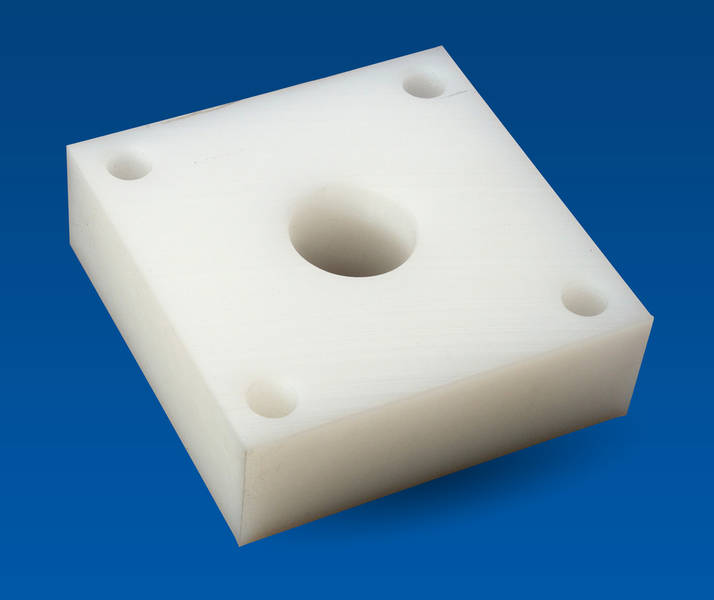

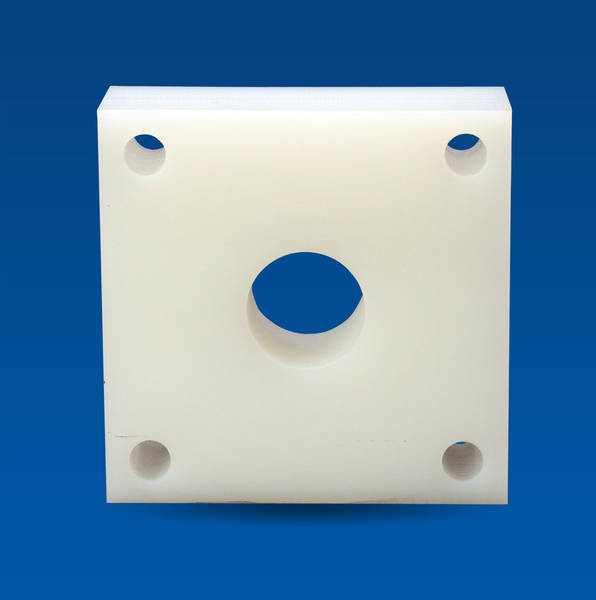

Click on the photos below for a larger view.

1

We stock bore sizes from 1/2 inch to 3 inch.

Our Self-Aligning Inserts are designed to replace a self-aligning ball bearing or roller bearing having a spherical O.D. in the conventional housing. They are self-aligning to the same degree as a steel bearing, therefore no changes are necessary in existing equipment when switching to plastic bearing inserts.

HIGH TEMPERATURE HIGH TEMPERATURE MATERIAL ™ BEARINGS

Most commercial plastic and metallic bearings have operating temperature ranges of approximately 200°F.In the 300°F to 500°F range exotic seals, greases, bearing fits, clearances and housings are required.It is possible to eliminate many of the associated purchasing, installation, and maintenance costs associated with these applications by utilizing Snapidle's HT series bearings, especially in the case of bearing inserts (PI-HT).Requiring no lubrication, retro-fitted in existing housings, and having operating temperature ranges to 600°F, these bearing products are the economical, simple answers to problem applications in the bakery, paving, and processing industries. Utilizing the same dimensional and engineering data of Snapidle's other bearing products, the HT series is available in a variety of bore ranges to fit many applications. Machined from pure, virgin high temperature material ™, these products are new technology solutions to age old industry problems.


4-BOLT PLASTIC FLANGE ENGINEERING DATA

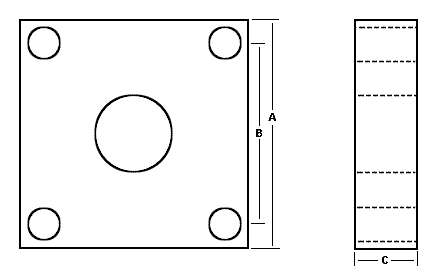

Drawing of 4-bolt plastic flange

DIMENSIONS - INCHES

Bearing Size # (Bore) Bolt Total Length & Width A Bolt Pattern Distance B Total Thickness C
1/2, 9/16, 5/8, 11/16 3/8 3 2 1/8 1
3/4 3/8 3 3/8 2 1/2 1
13/16, 7/8, 15/16, 1 7/16 3 3/4 2 3/4 1 1/4
1 1/16, 1 1/8, 1 3/16 7/16 4 1/4 3 1/4 1 1/2
1 1/4, 1 5/16, 1 3/8, 1 7/16 1/2 4 3/4 3 5/8 1 1/2
1 1/2, 1 9/16 1/2 5 1/8 4 1 3/4
1 5/8, 1 11/16, 1 3/4 1/2 5 1/4 4 1/8 1 3/4
1 7/8, 1 15/16 1/2 5 1/2 4 3/8 1 3/4
2, 2 1/8, 2 3/16 5/8 6 3/8 5 1/8 1 3/4
2 1/4, 2 3/8, 2 7/16 5/8 6 7/8 5 5/8 2

SPEED AND LOAD DATA FOR 4-BOLT PLASTIC FLANGE (UHMW)

This data applies to UHMW 4-Bolt Flange Bearings in unlubricated conditions. Since the upper operating temperature limits of UHMW bearings are 180° - 200°F, and since this material has a low coefficient of thermal conductivity, PV values must be carefully calculated.

The information in the table below has been calculated so as not to exceed the following limits for UHMW in a bearing application:

  • Maximum Pressure (P) = 800 lbs/in2
  • Maximum Velocity (V) = 50 surface feet/minute

Note: For UHMW the combination of PV may not exceed 3000. For PV's exceeding 3000, consult us for material recommendations.

If ambient temperatures are low or if the bearing is operating in water or other liquids and is sufficiently cooled, the PV limits may be increased as long as bearing temperature limits are not exceeded. The use of lubrication can potentially increase the operating PV limits by providing a lower coefficient of friction on the bearing.

Bearing Bore Size Max Speed (RPM) Max Radial Load (LBS)
1/2 380 400
9/16 330 450
5/8 300 500
11/16 275 550
3/4 250 750
13/16 230 800
7/8 210 865
15/16 200 933
1 190 1000
1 1/16 175 1266
1 1/8 160 1350
1 3/16 160 1416
1 1/4 150 1450
1 5/16 140 1565
1 3/8 130 1650
1 716 130 1700
1 1/2 125 2100
1 9/16 120 2183
1 5/8 115 2266
1 11/16 110 2350
1 3/4 105 2450
1 7/8 100 2616
1 15/16 95 2700
2 95 2800
2 1/8 85 2966
2 3/16 85 3050
2 1/4 80 3600
2 3/8 75 3900
2 7/16 60 5860
