Snapidle - Chain Tensioner Side Straps

UHMW

Knurled Strap

Knurled Strap

Single Hole Strap

Single Hole Strap

Dual Hole Strap

Dual Hole Strap

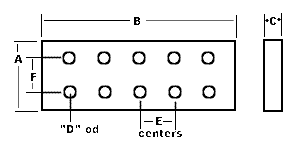

Dimension Data

Snapidle Size A B C D E F
SI-25 AND SI-35 .750 12'' .125 N.A. N.A. N.A.
SI-40N AND SI-50N .750 12'' .125 N.A. N.A. N.A.
SI-40 THRU SI-60 1.00 12'' .187 .290 .50 N.A.
SI-80 THRU SI-120 1.50 16'' .250 .290 .50 N.A.
SI-140 THRU SI-180 3'' 16'' .250 .290 .50 1.50
SI-200 3'' 24'' .250 .350 .75 1.50
SI-240 3'' 36'' .250 .350 .75 1.50

Pin Data

Snapidle S ize Length (± .015'')

OD (± .003'')

Threads Per Inch Class 214 (MIL-S-7742) Maximum Installation Torque Inch lbs.
SI-40 THRU SI-60 0.625 0.250 20 80
SI-80 THRU SI-180 0.750 0.312 18 185
SI-200 AND SI-240 0.750 0.312 18 185
Material: Heat Treated Carbon Steel               Finish: Zinc Spec. QQ-Z-325 Type 1 Class 3 plus clear chromate passivation.

"The first comment I would tell you about Snapidle Chain Tensioners is the first thing that all of the Engineering PE's tell me, it really works and there is no MATH! The second comment that I always say is that Snapidle will increase your chain life by 10 times, I have sold over 5000 SI-180 units into the worst possible environment, Waste Water (Sewer) Treatment Plants and I have never had a single one fail." -George Gephart of Gephart Industrial Sales, Denville New Jersey
